Maven Web應用

本章節我們將學習如何使用版本控制系統 Maven 來管理一個基于 web 的項目，如何創建、構建、部署已經運行一個 web 應用。

創建 Web 應用

我們可以使用 maven-archetype-webapp 插件來創建一個簡單的 Java web 應用。

打開命令控制臺，進入到 C:\MVN 文件夾，然后執行以下的 mvn 命令：

C:\MVN>mvn archetype:generate -DgroupId=com.companyname.automobile -DartifactId=trucks -DarchetypeArtifactId=maven-archetype-webapp  -DinteractiveMode=false

執行完后 Maven 將開始處理，并且創建完整的于Java Web 項目的目錄結構。

[INFO] Scanning for projects...
[INFO] Searching repository for plugin with prefix: 'archetype'.
[INFO] -------------------------------------------------------------------
[INFO] Building Maven Default Project
[INFO]    task-segment: [archetype:generate] (aggregator-style)
[INFO] -------------------------------------------------------------------
[INFO] Preparing archetype:generate
[INFO] No goals needed for project - skipping
[INFO] [archetype:generate {execution: default-cli}]
[INFO] Generating project in Batch mode
[INFO] --------------------------------------------------------------------
[INFO] Using following parameters for creating project
from Old (1.x) Archetype: maven-archetype-webapp:1.0
[INFO] --------------------------------------------------------------------
[INFO] Parameter: groupId, Value: com.companyname.automobile
[INFO] Parameter: packageName, Value: com.companyname.automobile
[INFO] Parameter: package, Value: com.companyname.automobile
[INFO] Parameter: artifactId, Value: trucks
[INFO] Parameter: basedir, Value: C:\MVN
[INFO] Parameter: version, Value: 1.0-SNAPSHOT
[INFO] project created from Old (1.x) Archetype in dir: C:\MVN\trucks
[INFO] -------------------------------------------------------------------
[INFO] BUILD SUCCESSFUL
[INFO] -------------------------------------------------------------------
[INFO] Total time: 16 seconds
[INFO] Finished at: Tue Jul 17 11:00:00 IST 2012
[INFO] Final Memory: 20M/89M
[INFO] -------------------------------------------------------------------

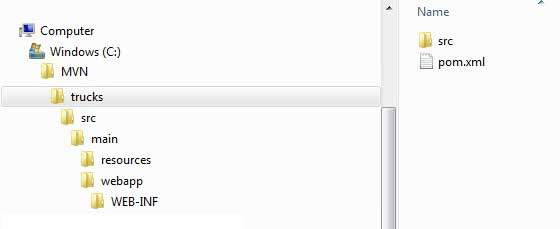

執行完后，我們可以在 C:/MVN 文件夾下看到 trucks 項目，查看項目的目錄結構：

Maven 目錄結構是標準的，各個目錄作用如下表所示：

文件夾結構	描述
trucks	包含 src 文件夾和 pom.xml 文件。
src/main/webapp	包含 index.jsp 文件和 WEB-INF 文件夾.
src/main/webapp/WEB-INF	包含 web.xml 文件
src/main/resources	包含圖片、properties資源文件。

pom.xml 文件代碼如下：

<project xmlns="http://maven.apache.org/POM/4.0.0"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
   http://maven.apache.org/maven-v4_0_0.xsd">
   <modelVersion>4.0.0</modelVersion>
   <groupId>com.companyname.automobile</groupId>
   <artifactId>trucks</artifactId>
   <packaging>war</packaging>
   <version>1.0-SNAPSHOT</version>
   <name>trucks Maven Webapp</name>
   <url>http://maven.apache.org</url>
   <dependencies>
      <dependency>
         <groupId>junit</groupId>
         <artifactId>junit</artifactId>
         <version>3.8.1</version>
         <scope>test</scope>
      </dependency>
   </dependencies>
   <build>
      <finalName>trucks</finalName>
   </build>
</project>

接下來我們打開 C:\ > MVN > trucks > src > main > webapp > 文件夾，可以看到一個已經創建好的 index.jsp 文件，代碼如下：

<html>
   <body>
      <h2>Hello World!</h2>
   </body>
</html>

構建 Web 應用

打開命令控制臺，進入 C:\MVN\trucks 目錄，然后執行下面的以下 mvn 命令：

C:\MVN\trucks>mvn clean package

Maven 將開始構建項目:

[INFO] Scanning for projects...
[INFO] -------------------------------------------------------------------
[INFO] Building trucks Maven Webapp
[INFO]    task-segment: [clean, package]
[INFO] -------------------------------------------------------------------
[INFO] [clean:clean {execution: default-clean}]
[INFO] [resources:resources {execution: default-resources}]
[WARNING] Using platform encoding (Cp1252 actually) to
copy filtered resources,i.e. build is platform dependent!
[INFO] Copying 0 resource
[INFO] [compiler:compile {execution: default-compile}]
[INFO] No sources to compile
[INFO] [resources:testResources {execution: default-testResources}]
[WARNING] Using platform encoding (Cp1252 actually) to
copy filtered resources,i.e. build is platform dependent!
[INFO] skip non existing resourceDirectory
C:\MVN\trucks\src\test\resources
[INFO] [compiler:testCompile {execution: default-testCompile}]
[INFO] No sources to compile
[INFO] [surefire:test {execution: default-test}]
[INFO] No tests to run.
[INFO] [war:war {execution: default-war}]
[INFO] Packaging webapp
[INFO] Assembling webapp[trucks] in [C:\MVN\trucks\target\trucks]
[INFO] Processing war project
[INFO] Copying webapp resources[C:\MVN\trucks\src\main\webapp]
[INFO] Webapp assembled in[77 msecs]
[INFO] Building war: C:\MVN\trucks\target\trucks.war
[INFO] -------------------------------------------------------------------
[INFO] BUILD SUCCESSFUL
[INFO] -------------------------------------------------------------------
[INFO] Total time: 3 seconds
[INFO] Finished at: Tue Jul 17 11:22:45 IST 2012
[INFO] Final Memory: 11M/85M
[INFO] -------------------------------------------------------------------

部署 Web 應用

打開 C:\ < MVN < trucks < target < 文件夾，找到 trucks.war 文件，并復制到你的 web 服務器的 web 應用目錄，然后重啟 web 服務器。

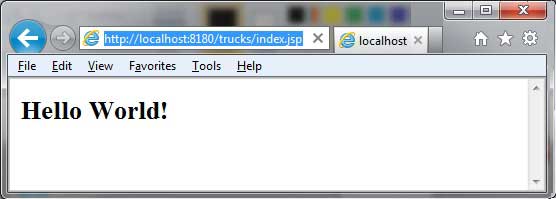

測試 Web 應用

訪問以下 URL 運行 web 應用：

http://:/trucks/index.jsp

驗證結果：
