設計

時間和事件處理

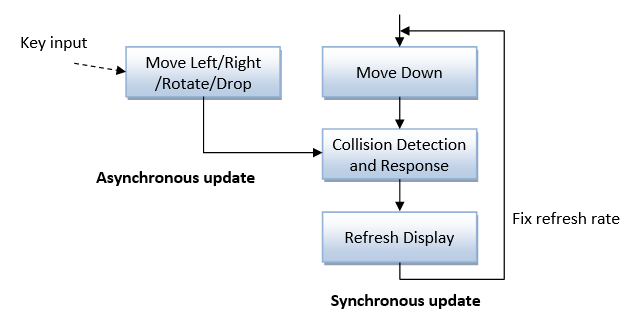

下面是時序圖：

以恒定的間隔，塊應向下移動一排。這可以通過 輕松實現javax.swing.Timer。

如果按下 UP、DOWN 或 ROTATE 鍵，模塊應立即做出反應(忽略時間間隔)。移動后，向下移動計時器重新啟動(檢查：重新啟動或恢復延遲?)。

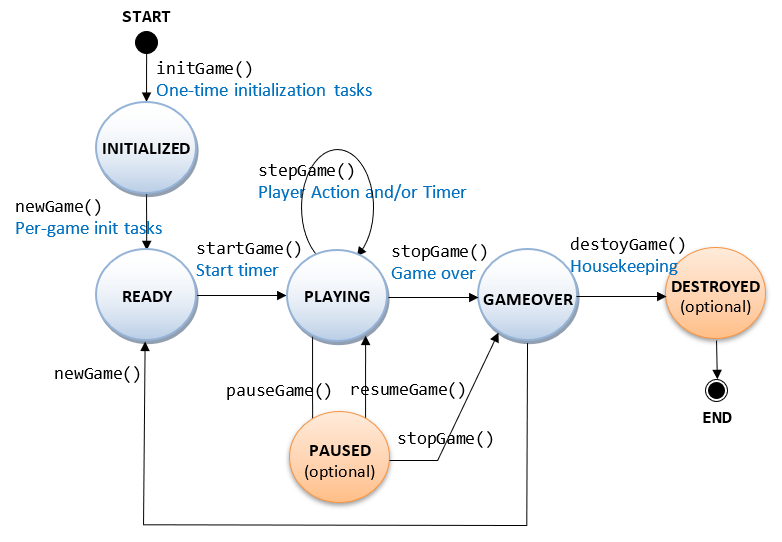

狀態圖

此狀態圖已部分實現，具有狀態INITIALIZED和。PLAYINGGAMEOVER

設計說明

鎖定延遲：當一個塊到達底部時，在塊被鎖定和轉換之前，用戶向左/向右移動有一個小的延遲。

“下降”應實現為重復“快速下降”以獲得更好的視覺效果，并允許用戶在下降過程中改變路線。

實施

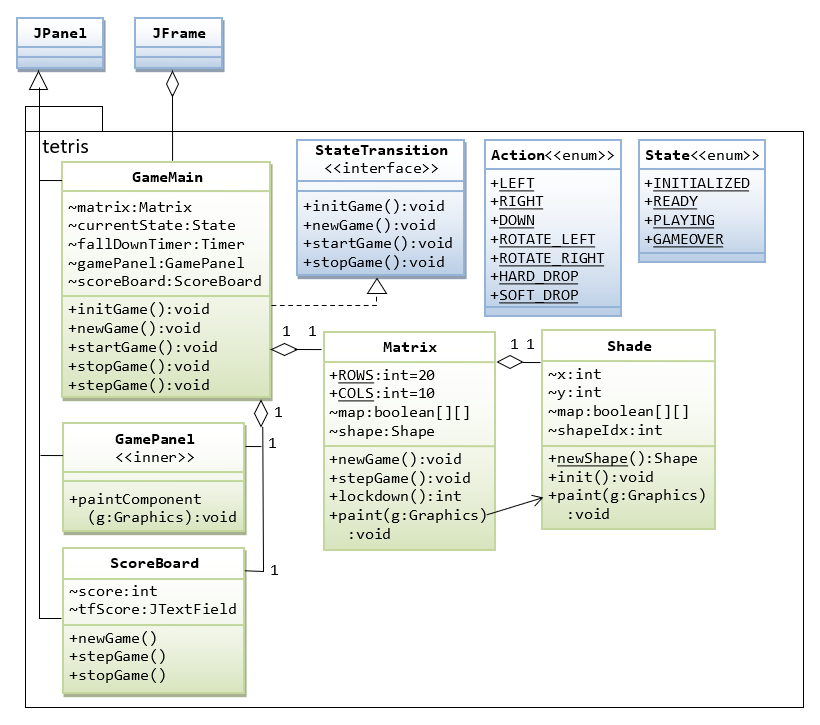

類圖

枚舉狀態.java

package tetris;
/**
 * The Sgtate enumeration defines the various states of the game.
 * See "State diagram".
 */
public enum State {
   INITIALIZED, READY, PLAYING, GAMEOVER
}

枚舉Action.java

package tetris;
/**
 * The Action enumeration contains all the permissible actions of a block (shape).
 */
public enum Action {
   DOWN, LEFT, RIGHT, ROTATE_LEFT, ROTATE_RIGHT, HARD_DROP, SOFT_DROP
}

類Shape.java

package tetris;
import java.awt.Color;
import java.awt.Graphics;
import java.util.Random;
/**
 * The Shape class models the falling blocks (or Tetrimino) in the Tetris game.
 * This class uses the "Singleton" design pattern. To get a new (random) shape,
 * call static method Shape.newShape().
 *
 * A Shape is defined and encapsulated inside the Matrix class.
 */
public class Shape {
   // == Define named constants ==
   /** The width and height of a cell of the Shape (in pixels) */
   public final static int CELL_SIZE = 32;
   // == Singleton Pattern: Get an instance via Shape.newShape() ==
   // Singleton instance (class variable)
   private static Shape shape;
   // Private constructor, cannot be called outside this class
   private Shape() { }
   // == Define Shape's properties ==
   // A shape is defined by a 2D boolean array map, with its
   //   top-left corner at the (x, y) of the Matrix.
   // All variables are "package" visible
   // Property 1: Top-left corner (x, y) of this Shape on the Matrix
   int x, y;
   // Property 2: Occupancy map
   boolean[][] map;
   // Property 3: The rows and columns for this Shape. Although they can be obtained
   //  from map[][], they are defined here for efficiency.
   int rows, cols;
   // Property 4: Array index for colors and maps
   int shapeIdx;
   // For ease of undo rotation, the original map is saved here.
   private boolean[][] mapSaved = new boolean[5][5];
   // All the possible shape maps
   // Use square array 3x3, 4x4, 5x5 to facilitate rotation computation.
   private static final boolean[][][] SHAPES_MAP = {
         {{ false, true,  false },
          { true,  true,  false },
          { true,  false, false }},  // Z
         {{ false, true,  false},
          { false, true,  false},
          { false, true,  true }},  // L
         {{ true, true },
          { true, true }},  // O
         {{ false, true,  false },
          { false, true,  true  },
          { false, false, true  }},   // S
         {{ false, true,  false, false },
          { false, true,  false, false },
          { false, true,  false, false },
          { false, true,  false, false }},  // I
         {{ false, true,  false},
          { false, true,  false},
          { true,  true,  false}},  // J
         {{ false, true,  false },
          { true,  true,  true  },
          { false, false, false }}};  // T
   // Each shape has its own color
   private static final Color[] SHAPES_COLOR = {
         new Color(245, 45, 65),  // Z (Red #F52D41)
         Color.ORANGE, // L
         Color.YELLOW, // O
         Color.GREEN,  // S
         Color.CYAN,   // I
         new Color(76, 181, 245), // J (Blue #4CB5F5)
         Color.PINK    // T (Purple)
   };
   // For generating new random shape
   private static final Random rand = new Random();
   /**
    * Static factory method to get a newly initialized random
    *   singleton Shape.
    *
    * @return the singleton instance
    */
   public static Shape newShape() {
      // Create object if it's not already created
      if(shape == null) {
         shape = new Shape();
      }
      // Initialize a new "random" shape by position at the top row, centered.
      // Update x, y, shapeIdx, map, rows and cols.
      // Choose a pattern randomly
      shape.shapeIdx = rand.nextInt(SHAPES_MAP.length);
      // Set this shape's pattern. No need to copy the contents
      shape.map = SHAPES_MAP[shape.shapeIdx];
      shape.rows = shape.map.length;
      shape.cols = shape.map[0].length;
      // Set this shape initial (x, y) at the top row, centered.
      shape.x = ((Matrix.COLS - shape.cols) / 2);
      // Find the initial y position. Need to handle rotated L and J
      //  with empty top rows, i.e., initial y can be 0, -1, -2,...
      outerloop:
      for (int row = 0; row < shape.rows; row++) {
         for (int col = 0; col < shape.cols; col++) {
            // Ignore empty rows, by checking the row number
            //   of the first occupied square
            if (shape.map[row][col]) {
               shape.y = -row;
               break outerloop;
            }
         }
      }
      return shape;  // return the singleton object
   }
   /**
    * Rotate the shape clockwise by 90 degrees.
    * Applicable to square matrix.
    *
    * <pre>
    *  old[row][col]             new[row][col]
    *  (0,0) (0,1) (0,2)         (2,0) (1,0) (0,0)
    *  (1,0) (1,1) (1,2)         (2,1) (1,1) (0,1)
    *  (2,0) (2,1) (2,2)         (2,2) (1,2) (0,2)
    *
    *  new[row][col] = old[numCols-1-col][row]
    * </pre>
    */
   public void rotateRight() {
      // Save the current map before rotate for quick undo if collision detected
      // (instead of performing an inverse rotate).
      for (int row = 0; row < rows; row++) {
         for (int col = 0; col < cols; col++) {
            mapSaved[row][col] = map[row][col];
         }
      }
      // Do the rotation on this map
      // Rows must be the same as columns (i.e., square)
      for (int row = 0; row < rows; row++) {
         for (int col = 0; col < cols; col++) {
            map[row][col] = mapSaved[cols - 1 - col][row];
         }
      }
   }
   /**
    * Rotate the shape anti-clockwise by 90 degrees.
    * Applicable to square matrix.
    *
    * <pre>
    *  old[row][col]             new[row][col]
    *  (0,0) (0,1) (0,2)         (0,2) (1,2) (2,2)
    *  (1,0) (1,1) (1,2)         (0,1) (1,1) (2,1)
    *  (2,0) (2,1) (2,2)         (0,0) (1,0) (2,0)
    *
    *  new[row][col] = old[col][numRows-1-row]
    * </pre>
    */
   public void rotateLeft() {
      // Save the current map before rotate for quick undo if collision detected
      // (instead of performing an inverse rotate).
      for (int row = 0; row < rows; row++) {
         for (int col = 0; col < cols; col++) {
            mapSaved[row][col] = map[row][col];
         }
      }
      // Do the rotation on this map
      // Rows must be the same as columns (i.e., square)
      for (int row = 0; row < rows; row++) {
         for (int col = 0; col < cols; col++) {
            map[row][col] = mapSaved[col][rows-1-row];
         }
      }
   }
   /**
    * Undo the rotate, due to move not allowed.
    */
   public void undoRotate() {
      // Restore the array saved before the move
      for (int row = 0; row < rows; row++) {
         for (int col = 0; col < cols; col++) {
            map[row][col] = mapSaved[row][col];
         }
      }
   }
   /**
    * Paint itself via the Graphics object.
    * Since Shape is encapsulated in Matrix, shape.paint(Graphics)
    * shall be called in matrix.paint(Graphics).
    *
    * @param g - the drawing Graphics object
    */
   public void paint(Graphics g) {
      int yOffset = 1;  // Apply a small Y_OFFSET for nicer display?!
      g.setColor(SHAPES_COLOR[this.shapeIdx]);
      for (int row = 0; row < rows; row++) {
         for (int col = 0; col < cols; col++) {
            if (map[row][col]) {
               g.fill3DRect((x+col)*CELL_SIZE, (y+row)*CELL_SIZE+yOffset,
                     CELL_SIZE, CELL_SIZE, true);
            }
         }
      }
   }
}

類Matrix.java

package tetris;
import java.awt.Color;
import java.awt.Graphics;
/**
 * The Matrix class models the Tetris Game Board (called matrix)
 * that holds one falling block (shape).
 */
public class Matrix implements StateTransition {
   // == Define named constants ==
   /** Number of rows of the matrix */
   public final static int ROWS = 20;
   /** Number of columns of the matrix */
   public final static int COLS = 10;
   /** The width and height of a cell of the Shape (in pixels) */
   public final static int CELL_SIZE = Shape.CELL_SIZE;
   private static final Color COLOR_OCCUPIED = Color.LIGHT_GRAY;
   private static final Color COLOR_EMPTY = Color.WHITE;
   // == Define Matrix's properties ==
   // Property 1: The game board (matrix) is defined by a 2D boolean array map.
   boolean map[][] = new boolean[ROWS][COLS];
   // Property 2: The board has ONE falling shape
   Shape shape;
   /**
    * Constructor
    */
   public Matrix() { }
   /**
    * Reset the matrix for a new game, by reseting all the properties.
    * Clear map[][] and get a new random Shape.
    */
   @Override
   public void newGame() {
      // Clear the map
      for (int row = 0; row < ROWS; row++) {
         for (int col = 0; col < COLS; col++) {
            map[row][col] = false;  // empty
         }
      }
      // Get a new random shape
      shape = Shape.newShape();
   }
   /**
    * The shape moves on the given action (left, right, down, rotate).
    * @return true if it is at the bottom and cannot move down further.
    *         Need to lock down this block.
    */
   public boolean stepGame(Action action) {
      switch (action) {
         case LEFT:
            shape.x--;  // try moving
            if (!actionAllowed()) shape.x++;  // undo the move
            break;
         case RIGHT:
            shape.x++;
            if (!actionAllowed()) shape.x--;  // undo the move
            break;
         case ROTATE_LEFT:
            shape.rotateLeft();
            if (!actionAllowed()) shape.undoRotate();  // undo the move
            break;
         case ROTATE_RIGHT:
            shape.rotateRight();
            if (!actionAllowed()) shape.undoRotate();  // undo the move
            break;
         case HARD_DROP: // Handle as FAST "down" in GameMain class for better visual
         case SOFT_DROP: // Handle as FAST "down" in GameMain class for better visual
//          do {
//             shape.y++;
//          } while (moveAllowed());
//          shape.y--;
//          break;
         case DOWN:
            shape.y++;
            if (!actionAllowed()) {
               // At bottom, cannot move down further. To lock down this block
               shape.y--;    // undo the move
               return true;
            }
            break;
      }
      return false;  // not reach the bottom
   }
   /**
    * Check if the shape moves outside the matrix,
    *   or collide with existing shapes in the matrix.
    * @return true if this move action is allowed
    */
   public boolean actionAllowed() {
      for (int shapeRow = 0; shapeRow < shape.rows; shapeRow++) {
         for (int shapeCol = 0; shapeCol < shape.cols; shapeCol++) {
            int matrixRow = shapeRow + shape.y;
            int matrixCol = shapeCol + shape.x;
            if (shape.map[shapeRow][shapeCol]
                && (matrixRow < 0 || matrixRow >= Matrix.ROWS
                    || matrixCol < 0 || matrixCol >= Matrix.COLS
                    || this.map[matrixRow][matrixCol])) {
               return false;
            }
         }
      }
      return true;
   }
   /**
    * Lock down the block, by transfer the block's content to the matrix.
    * Also clear filled lines, if any.
    * @return the number of rows removed in the range of [0, 4]
    */
   public int lockDown() {
      // Block at bottom, lock down by transferring the block's content
      //  to the matrix
      for (int shapeRow = 0; shapeRow < shape.rows; shapeRow++) {
         for (int shapeCol = 0; shapeCol < shape.cols; shapeCol++) {
            if (shape.map[shapeRow][shapeCol]) {
               this.map[shapeRow + shape.y][shapeCol + shape.x] = true;
            }
         }
      }
      // Process the filled row(s) and update the score
      return clearLines();
   }
   /**
    * Process the filled rows in the game board and remove them.
    * The filled rows need not be at the bottom.
    *
    * @return the number of rows removed in the range of [0, 4]
    */
   public int clearLines() {
      // Starting from the last rows, check if a row is filled if so, move down
      // the occupied square. Need to check all the way to the top-row
      int row = ROWS - 1;
      int rowsRemoved = 0;
      boolean removeThisRow;
      while (row >= 0) {
         removeThisRow = true;
         for (int col = 0; col < COLS; col++) {
            if (!map[row][col]) {
               removeThisRow = false;
               break;
            }
         }
         if (removeThisRow) {
            // delete the row by moving down the occupied slots.
            for (int row1 = row; row1 > 0; row1--) {
               for (int col1 = 0; col1 < COLS; col1++) {
                  map[row1][col1] = map[row1 - 1][col1];
               }
            }
            rowsRemoved++;
            // The top row shall be empty now.
            for (int col = 0; col < COLS; col++)
               map[0][col] = false;

            // No change in row number. Check this row again (recursion).
         } else {
            // next row on top
            row--;
         }
      }
      return rowsRemoved;
   }
   /**
    * Paint itself via the Graphics context.
    * The JFrame's repaint() in GameMain class callbacks paintComponent(Graphics)
    * This shape.paint(Graphics) shall be placed in paintComponent(Graphics).
    * @param g - the drawing Graphics object
    */
   public void paint(Graphics g) {
      int yOffet = 1;   // apply a small y offset for nicer display?!
      for (int row = 0; row < ROWS; row++) {
         for (int col = 0; col < COLS; col++) {
            g.setColor(map[row][col] ? COLOR_OCCUPIED : COLOR_EMPTY);
            g.fill3DRect(col*CELL_SIZE, row*CELL_SIZE+yOffet,
                  CELL_SIZE, CELL_SIZE, true);
         }
      }
      // Also paint the Shape encapsulated
      shape.paint(g);
   }
}

主類GameMain.java

這是你的任務!您需要根據 Snake 的GameMain.

添加控件、圖像和聲音效果
