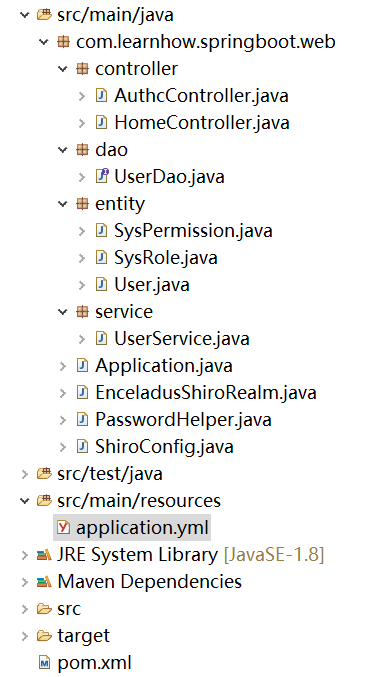

項目結構截圖：

項目在結構上沒有任何特殊之處，基本就是SpringMVC的傳統結構重點需要關注的是3個Entity類、2個Controller類和1個Config類。

首先，提供pom的完整文檔結構：

<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.learnhow.springboot</groupId>
    <artifactId>web</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>
    <name>web</name>
    <url>http://maven.apache.org</url>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.4.RELEASE</version>
        <relativePath /> <!-- lookup parent from repository -->
    </parent>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-spring</artifactId>
            <version>1.4.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

其次，創建數據庫和表結構。由于我們采用jpa作為數據庫持久層框架，因此我們將建表的任務交給框架自動完成，我們只需要在entity中寫清楚對應關系即可。

CREATE DATABASE enceladus;  // enceladus是數據庫的名稱

application.yml

server:
   port: 8088
spring:
   application:
      name: shiro
   datasource:
      url: jdbc:mysql://192.168.31.37:3306/enceladus
      username: root
      password: 12345678
      driver-class-name: com.mysql.jdbc.Driver
   jpa:
      database: mysql
      showSql: true
      hibernate:
         ddlAuto: update
      properties:
         hibernate:
            dialect: org.hibernate.dialect.MySQL5Dialect
            format_sql: true

最基礎的Shiro配置至少需要三張主表分別代表用戶(user)、角色(role)、權限(permission)，用戶和角色，角色與權限之間都是ManyToMany的對應關系，不熟悉實體對應關系的小伙伴可以先去熟悉一下Hibernate。

User.java

import java.io.Serializable;
import java.util.List;
import javax.persistence.Entity;
import javax.persistence.FetchType;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.JoinTable;
import javax.persistence.ManyToMany;
import javax.persistence.Table;
@Entity
@Table(name = "user_t")
public class User implements Serializable {
    private static final long serialVersionUID = -3320971805590503443L;
    @Id
    @GeneratedValue
    private long id;
    private String username;
    private String password;
    private String salt;
    @ManyToMany(fetch = FetchType.EAGER)
    @JoinTable(name = "user_role_t", joinColumns = { @JoinColumn(name = "uid") }, inverseJoinColumns = {
            @JoinColumn(name = "rid") })
    private List<SysRole> roles;
    public long getId() {
        return id;
    }
    public void setId(long id) {
        this.id = id;
    }
    public String getUsername() {
        return username;
    }
    public void setUsername(String username) {
        this.username = username;
    }
    public String getPassword() {
        return password;
    }
    public void setPassword(String password) {
        this.password = password;
    }
    public String getSalt() {
        return salt;
    }
    public void setSalt(String salt) {
        this.salt = salt;
    }
    public List<SysRole> getRoles() {
        return roles;
    }
    public void setRoles(List<SysRole> roles) {
        this.roles = roles;
    }
    public String getCredentialsSalt() {
        return username + salt + salt;
    }
    @Override
    public String toString() {
        return "User [id=" + id + ", username=" + username + "]";
    }
}
user

SysRole.java

import java.io.Serializable;
import java.util.List;
import javax.persistence.Entity;
import javax.persistence.FetchType;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.JoinTable;
import javax.persistence.ManyToMany;
import javax.persistence.Table;
@Entity
@Table(name = "role_t")
public class SysRole implements Serializable {
    private static final long serialVersionUID = -8687790154329829056L;
    @Id
    @GeneratedValue
    private Integer id;
    private String role;
    @ManyToMany(fetch = FetchType.EAGER)
    @JoinTable(name = "role_permission_t", joinColumns = { @JoinColumn(name = "rid") }, inverseJoinColumns = {
            @JoinColumn(name = "pid") })
    private List<SysPermission> permissions;
    @ManyToMany
    @JoinTable(name = "user_role_t", joinColumns = { @JoinColumn(name = "rid") }, inverseJoinColumns = {
            @JoinColumn(name = "uid") })
    private List<User> users;

    public Integer getId() {
        return id;
    }
    public void setId(Integer id) {
        this.id = id;
    }
    public String getRole() {
        return role;
    }
    public void setRole(String role) {
        this.role = role;
    }
    public List<SysPermission> getPermissions() {
        return permissions;
    }
    public void setPermissions(List<SysPermission> permissions) {
        this.permissions = permissions;
    }
    public List<User> getUsers() {
        return users;
    }
    public void setUsers(List<User> users) {
        this.users = users;
    }
}
role

SysPermission.java

import java.io.Serializable;
import java.util.List;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.JoinTable;
import javax.persistence.ManyToMany;
import javax.persistence.Table;
@Entity
@Table(name = "permission_t")
public class SysPermission implements Serializable {
    private static final long serialVersionUID = 353629772108330570L;
    @Id
    @GeneratedValue
    private Integer id;
    private String name;
    @ManyToMany
    @JoinTable(name = "role_permission_t", joinColumns = { @JoinColumn(name = "pid") }, inverseJoinColumns = {
            @JoinColumn(name = "rid") })
    private List<SysRole> roles;

    public Integer getId() {
        return id;
    }
    public void setId(Integer id) {
        this.id = id;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    public List<SysRole> getRoles() {
        return roles;
    }
    public void setRoles(List<SysRole> roles) {
        this.roles = roles;
    }
}
perm

在注明對應關系以后，jpa會幫助我們創建3張實體表和2張中間表：

最后我們還需要初始化一些基礎數據：

INSERT INTO `permission_t` VALUES (1, 'Retrieve');
INSERT INTO `permission_t` VALUES (2, 'Create');
INSERT INTO `permission_t` VALUES (3, 'Update');
INSERT INTO `permission_t` VALUES (4, 'Delete');
INSERT INTO `role_t` VALUES (1, 'guest');
INSERT INTO `role_t` VALUES (2, 'user');
INSERT INTO `role_t` VALUES (3, 'admin');
INSERT INTO `role_permission_t` VALUES (1, 1);
INSERT INTO `role_permission_t` VALUES (1, 2);
INSERT INTO `role_permission_t` VALUES (2, 2);
INSERT INTO `role_permission_t` VALUES (3, 2);
INSERT INTO `role_permission_t` VALUES (1, 3);
INSERT INTO `role_permission_t` VALUES (2, 3);
INSERT INTO `role_permission_t` VALUES (3, 3);
INSERT INTO `role_permission_t` VALUES (4, 3);

至此，前期的準備工作已經完成。下面為了讓Shiro能夠在項目中生效我們需要通過代碼的方式提供配置信息。Shiro的安全管理提供了兩個層面的控制：(1)用戶認證：需要用戶通過登陸證明你是你自己。(2)權限控制：在證明了你是你自己的基礎上系統為當前用戶賦予權限。后者我們已經在數據庫中完成了大部分配置。

用戶認證的常規手段就是登陸認證，在目前的情況下我們認為只有用戶自己知道登陸密碼。不過Shiro為我們做的更多，它還提供了一套能夠很方便我們使用的密碼散列算法。因為普通的散列技巧可以很容易的通過暴力手段破解，我們可以在散列的過程中加入一定的算法復雜度(增加散列次數與Salt)從而解決這樣的問題。

import org.apache.shiro.crypto.RandomNumberGenerator;
import org.apache.shiro.crypto.SecureRandomNumberGenerator;
import org.apache.shiro.crypto.hash.SimpleHash;
import org.apache.shiro.util.ByteSource;
import com.learnhow.springboot.web.entity.User;
public class PasswordHelper {
    private RandomNumberGenerator randomNumberGenerator = new SecureRandomNumberGenerator();
    public static final String ALGORITHM_NAME = "md5"; // 基礎散列算法
    public static final int HASH_ITERATIONS = 2; // 自定義散列次數
    public void encryptPassword(User user) {
        // 隨機字符串作為salt因子，實際參與運算的salt我們還引入其它干擾因子
        user.setSalt(randomNumberGenerator.nextBytes().toHex());
        String newPassword = new SimpleHash(ALGORITHM_NAME, user.getPassword(),
                ByteSource.Util.bytes(user.getCredentialsSalt()), HASH_ITERATIONS).toHex();
        user.setPassword(newPassword);
    }
}

這個類幫助我們解決用戶注冊的密碼散列問題，當然我們還需要使用同樣的算法來保證在登陸的時候密碼能夠被散列成相同的字符串。如果兩次散列的結果不同系統就無法完成密碼比對，因此在計算散列因子的時候我們不能引入變量，例如我們可以將username作為salt因子加入散列算法，但是不能選擇password或datetime，具體原因各位請手動測試。

另外為了幫助Shiro能夠正確為當前登陸用戶做認證和賦權，我們需要實現自定義的Realm。具體來說就是實現doGetAuthenticationInfo和doGetAuthorizationInfo，這兩個方法前者負責登陸認證后者負責提供一個權限信息。

import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authc.SimpleAuthenticationInfo;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.apache.shiro.util.ByteSource;
import org.springframework.beans.factory.annotation.Autowired;
import com.learnhow.springboot.web.entity.SysPermission;
import com.learnhow.springboot.web.entity.SysRole;
import com.learnhow.springboot.web.entity.User;
import com.learnhow.springboot.web.service.UserService;
public class EnceladusShiroRealm extends AuthorizingRealm {
    @Autowired
    private UserService userService;
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
        SimpleAuthorizationInfo authorizationInfo = new SimpleAuthorizationInfo();
        String username = (String) principals.getPrimaryPrincipal();
        User user = userService.findUserByName(username);
        for (SysRole role : user.getRoles()) {
            authorizationInfo.addRole(role.getRole());
            for (SysPermission permission : role.getPermissions()) {
                authorizationInfo.addStringPermission(permission.getName());
            }
        }
        return authorizationInfo;
    }
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
        String username = (String) token.getPrincipal();
        User user = userService.findUserByName(username);
        if (user == null) {
            return null;
        }
        SimpleAuthenticationInfo authenticationInfo = new SimpleAuthenticationInfo(user.getUsername(), user.getPassword(),
                ByteSource.Util.bytes(user.getCredentialsSalt()), getName());
        return authenticationInfo;
    }
}

還記得前面我們說過，認證的時候我們需要提供相同的散列算法嗎?可是在上面的代碼里，我們并未提供。那么Shiro是怎么做的呢?AuthorizingRealm是一個抽象類，我們會在另外的配置文件里向它提供基礎算法與散列次數這兩個變量。

import java.util.HashMap;
import java.util.Map;
import org.apache.shiro.authc.credential.HashedCredentialsMatcher;
import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class ShiroConfig {
    @Bean
    public ShiroFilterFactoryBean shirFilter(SecurityManager securityManager) {
        ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean();
        shiroFilterFactoryBean.setSecurityManager(securityManager);
        Map<String, String> filterChainDefinitionMap = new HashMap<String, String>();
        shiroFilterFactoryBean.setLoginUrl("/login");
        shiroFilterFactoryBean.setUnauthorizedUrl("/unauthc");
        shiroFilterFactoryBean.setSuccessUrl("/home/index");
        filterChainDefinitionMap.put("/*", "anon");
        filterChainDefinitionMap.put("/authc/index", "authc");
        filterChainDefinitionMap.put("/authc/admin", "roles[admin]");
        filterChainDefinitionMap.put("/authc/renewable", "perms[Create,Update]");
        filterChainDefinitionMap.put("/authc/removable", "perms[Delete]");
        shiroFilterFactoryBean.setFilterChainDefinitionMap(filterChainDefinitionMap);
        return shiroFilterFactoryBean;
    }
    @Bean
    public HashedCredentialsMatcher hashedCredentialsMatcher() {
        HashedCredentialsMatcher hashedCredentialsMatcher = new HashedCredentialsMatcher();
        hashedCredentialsMatcher.setHashAlgorithmName(PasswordHelper.ALGORITHM_NAME); // 散列算法
        hashedCredentialsMatcher.setHashIterations(PasswordHelper.HASH_ITERATIONS); // 散列次數
        return hashedCredentialsMatcher;
    }
    @Bean
    public EnceladusShiroRealm shiroRealm() {
        EnceladusShiroRealm shiroRealm = new EnceladusShiroRealm();
        shiroRealm.setCredentialsMatcher(hashedCredentialsMatcher()); // 原來在這里
        return shiroRealm;
    }
    @Bean
    public SecurityManager securityManager() {
        DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager();
        securityManager.setRealm(shiroRealm());
        return securityManager;
    }
    @Bean
    public PasswordHelper passwordHelper() {
        return new PasswordHelper();
    }
}

接下來，我們將目光集中到上文的shirFilter方法中。Shiro通過一系列filter來控制訪問權限，并在它的內部為我們預先定義了多個過濾器，我們可以直接通過字符串配置這些過濾器。

常用的過濾器如下：

authc：所有已登陸用戶可訪問

roles：有指定角色的用戶可訪問，通過[ ]指定具體角色，這里的角色名稱與數據庫中配置一致

perms：有指定權限的用戶可訪問，通過[ ]指定具體權限，這里的權限名稱與數據庫中配置一致

anon：所有用戶可訪問，通常作為指定頁面的靜態資源時使用

為了測試方便我們不引入頁面配置直接通過rest方式訪問

不受權限控制訪問的地址

import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.IncorrectCredentialsException;
import org.apache.shiro.authc.UnknownAccountException;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.subject.Subject;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import com.learnhow.springboot.web.PasswordHelper;
import com.learnhow.springboot.web.entity.User;
import com.learnhow.springboot.web.service.UserService;
@RestController
@RequestMapping
public class HomeController {
    @Autowired
    private UserService userService;
    @Autowired
    private PasswordHelper passwordHelper;
    @GetMapping("login")
    public Object login() {
        return "Here is Login page";
    }
    @GetMapping("unauthc")
    public Object unauthc() {
        return "Here is Unauthc page";
    }
    @GetMapping("doLogin")
    public Object doLogin(@RequestParam String username, @RequestParam String password) {
        UsernamePasswordToken token = new UsernamePasswordToken(username, password);
        Subject subject = SecurityUtils.getSubject();
        try {
            subject.login(token);
        } catch (IncorrectCredentialsException ice) {
            return "password error!";
        } catch (UnknownAccountException uae) {
            return "username error!";
        }
        User user = userService.findUserByName(username);
        subject.getSession().setAttribute("user", user);
        return "SUCCESS";
    }
    @GetMapping("register")
    public Object register(@RequestParam String username, @RequestParam String password) {
        User user = new User();
        user.setUsername(username);
        user.setPassword(password);
        passwordHelper.encryptPassword(user);
        userService.saveUser(user);
        return "SUCCESS";
    }
}

需要指定權限可以訪問的地址

import org.apache.shiro.SecurityUtils;
import org.apache.shiro.subject.Subject;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import com.learnhow.springboot.web.entity.User;
@RestController
@RequestMapping("authc")
public class AuthcController {
    @GetMapping("index")
    public Object index() {
        Subject subject = SecurityUtils.getSubject();
        User user = (User) subject.getSession().getAttribute("user");
        return user.toString();
    }
    @GetMapping("admin")
    public Object admin() {
        return "Welcome Admin";
    }
    // delete
    @GetMapping("removable")
    public Object removable() {
        return "removable";
    }
    // insert & update
    @GetMapping("renewable")
    public Object renewable() {
        return "renewable";
    }
}

以上就是“SpringBoot整合Shiro”的介紹，大家如果感興趣，可以關注一下動力節點的SpringBoot教程，里面有更多知識可以免費在線學習，相信對大家的學習會有所幫助。
